Oil Chillers

The Global Solution in Compressed Air treatment,Precision Air conditioning and Process cooling

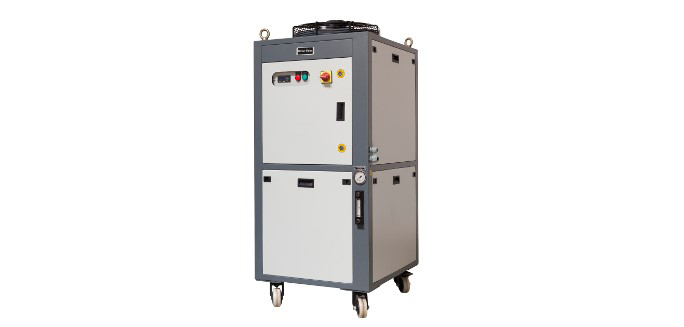

Spindles are important components of most industrial or small-scale machinery and are extremely sensitive to heat. As the machine at hand is in use, the temperature of the spindles rises, causing the machinery to malfunction. In order to avoid this possibility, it is important to maintain the temperature of the spindles within specified limits, ensuring the machine tool’s smooth operation. Our Spindle Chiller helps achieve these temperatures by re-circulating machine-compatible coolant through a cooling circuit within the cooler. They use the eco-friendly refrigerant R134a and contain inbuilt coolant tanks and re-circulating pumps. These chiller controllers are compact, mobile and based on microprocessors for their functionality,

Salient Features:

  • DAYTON Cooling Chillers are ruggedly designed to work 24 x 7 throughout the year in extremely harsh industrial environment.
  • Chillers are available in wide range from 0.3 tr to 50 tr cooling capacities and liquid oil temperature range of +25 to 40 Deg C., (Higher Temperature Models on request)
  • Self Sufficient Chillers with built in Refrigeration circuit, water reservoir, transfer pump and necessary controls.
  • Extra large Sized Condenser Coil and Air Filters for operation in High Ambient up till 50 Deg c.
  • Plug and Play type fully factory tested, pre wired charged and piped for easy installation.
  • DAYTON based temperature controller with LED/LCD digital display for temperature status and alarm outputs. Easy to use with tamper proof password facility built in the controller.
  • Use of latest energy efficient components like Scroll compressors and PHE heat exchangers along with multiple refrigeration circuit options for enhanced energy efficiency
  • Chiller manufactured in state of art facilities along with ISO 9001: 2015 procedures and thoroughly tested and packaged before dispatching.
  • Chiller designed on latest 3D CAD software to ensure components placed for easy access and compact body footprint

Component Features and Options:

  • Compressors (sealed, semi sealed reciprocatory)
  • Evaporators (Compact Brazed Plate Type)
  • Gear/Vane/Trochoid Pump options
  • Air and water cooled Condensers (fin and tube, plate type and shell-in-tube)
  • Refrigerant R22 /R134a/R407C
  • MS/GI powder coated or stainless steel outer sheet metal body
  • Refrigerant circuit consists of filter dryer, thermostatic expansion valve/capillary, sight glass, accumulator, receiver, solenoid valve, hot gas bypass, Gauges and other controls
  • Optional fan speed controller used for operation of chiller at low ambient
  • Safety devices include - high /low refrigerant pressure switches, Anti freeze thermostat, oil pressure and flow switch, inline filter.
  • Built in Electrical control box with MCB, Contactors, Thermal Relay/ MPCB/Phase Sequence relay and all status/fault indicating LEDS and audio alarms.
  • State of the Art Digital temperature controller with LED/LCD for precise temperature controlling
  • Potential free alarm/control signals and interlocks available for Machine - Chiller Interfacing and Remote Signaling.
  • High Quality Refrigerant grade copper tubing with internal mirror finishing
  • Unit mounted on C Channels or Castor wheels with lockable brakes for easy movement.

Applications:

  • Metal Cutting :Turning, Machining Centers, Grinding, Honing,Broaching, Drilling , Gear Hobbing
  • Metal Forming:Presses, Bending, Shearing, Hydroforming, Deep Drawing, Punching, Rolling, Extrusion
  • Plastics:Injection Moulding, Extrusion
  • Textile:Padder, Dryer, Mercerize
  • General Purpose Hydraulic Equipment
