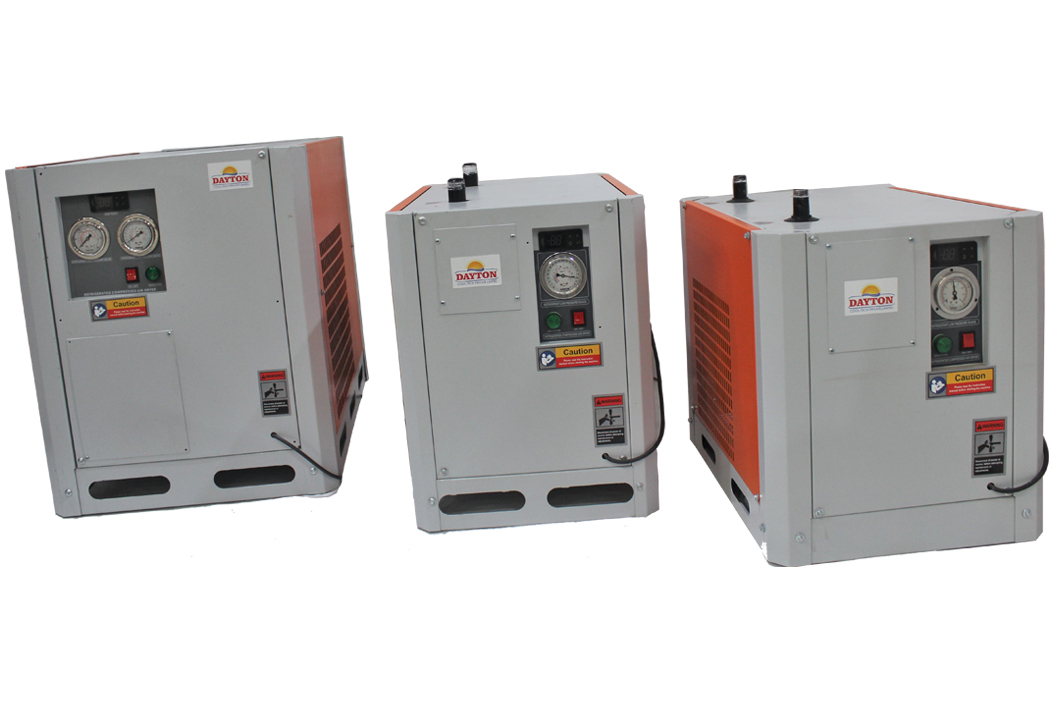

Compressed refrigeration air dryer
The Global Solution in Compressed Air treatment,Precision Air conditioning and Process cooling
Why To Use Air Dryer ??
Untreated compressed air contains water, dirt, oil and other waste particles which will mix together form unwanted abrasive slurry, this abrasive slurry ,Generally acidic in nature, will cause wear in pneumatic machinery, valves, orifice etc. causing frequent high maintenance breakdowns and costly air leaks. A typical compressed system wastes approximate 35% air due to "leakages" which are mainly caused due to corrosion.
All ferrous metals need two components to cause corrosion; moisture and oxygen.
Untreated compressed air contains both. This corrosion attacks piping, joining elements and also the equipment where compressed air is being used. The end result is leakages and malfunctioning of expensive equipment Rusting commences on ferrous metals when the relative humidity (RH) of air exceed approximate 30%. However, at this point oxidation is slight and "serious" corrosion starts when exceeds 60%. It therefore seems very logical to keep RH value in the air at or below 60%.
It is thus very essential to install a suitable Air Purification System to meet individual needs
Dayton cool tech Pvt. Ltd. has teamed up with the experts in this field, (with heavy presence all over the world) to give you a Complete Air Purification System (CAPS).
Salient Features:
- Controller: A completely automatic self-contained Logic controller with standard wiring requiring "no adjustments"
- Heat Exchanger: Air-to-Air Heat Exchanger made out of copper tubes with aluminium fins and diversion plates plus Reverse Channel design to give better cooling efficiency, higher outlet air temperature and lower energy Consumption
- Evaporator: Made out of wave type aluminium fins with diversion plates to increase the contact surface of air and refrigerant so as to give optimum cooling efficiency
- Condenser: A very large intake condenser with "blow-up" design for better heat rejection and good ventilation
- Drain Valve: A “motor-driven" (no more burnt solenoid coils) timer controller electronic drainage with anti-blockage large ball valve
- Quality Standard: Chiller manufactured with ISO 9001:2008 procedures and thoroughly tested and packaged before dispatching.
Options Available In Product:
- Compressors (sealed, semi sealed reciprocator, scroll and screw)
- Evaporators (Stainless Steel/Copper coil-in-tank, plate type)
- Air cooled Condensers (fin and tube)
- Refrigerant R22/R134a
- MS/GI powder coated or stainless steel outer sheet metal body
- Refrigerant circuit consists of filter dryer, capillary, sight glass, accumulator, receiver, solenoid valve, hot gas bypass, Gauges and other controls
- digital temperature controller with led for precise temperature controlling
- High Quality Refrigerant grad copper tubing with internal mirror finishing
Applications:
- Engineering Industry: CNC machines, automobile, pneumatic Machinery, Electronic, Robotics, cryogenic equipment etc.
- Plastic and Packaging Industry: Injection moulding. blow moulding, lamination, extruders, thermo and vacuum forming and blister packing machines.
- Pharmaceutical: Blister Packaging, Tablet Coating, Lamination and drug making process
- Food and Beverage Industry: Packaging / Bottling/ Distillation plants, Dairy, Biscuit making, Breweries and other process related equipment.
- Medical: medical electronics, hospitals Textile
- Industry: Padders, Tea Gardens, Calendars, Rice Mills, Sand Blasting, Sugar Mills ,Bleaching/Dyeing and other allied equipment Also widely used Chemical/Pulp and Paper industry, process control industry, Offset printing, an many other applications
